Pylontech & Dyness Battery Rack – Steel Mounting System
Pylontech & Dyness Battery Rack – Steel Mounting System
Excluding VAT and Import Duties
Steel floor-mounted battery rack designed for Pylontech and Dyness lithium battery modules.
Ideal for clean, safe, and professional energy storage system (ESS) installations in residential and small commercial projects.
-
Compatible with Pylontech US5000/US2000 / US3000 and Dyness В4850/В3 battery modules
-
Rigid steel construction for enhanced safety and stability
-
Modular design – configurable for different battery quantities
-
Suitable for professional installers and experienced DIY users
-
Designed for EU energy storage installations
Recommended for professional installation. End users are responsible for compliance with local regulations.

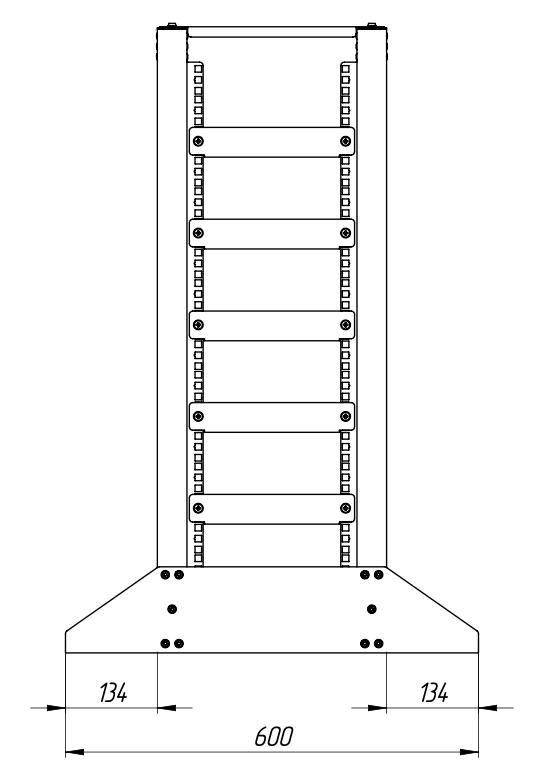

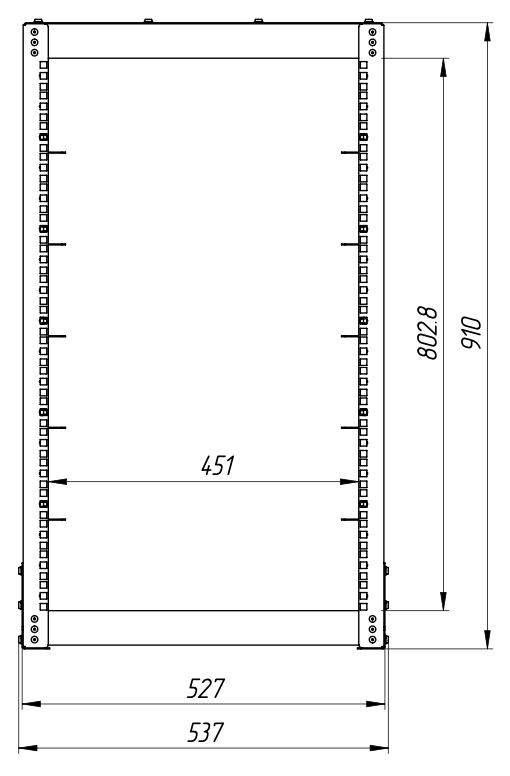

Technical Drawings
- Height: 910 mm.
- Width: 537 mm.
- Mounting pattern: 540x600 mm.
Compatibility
Compatible Battery Models
Pylontech
- US5000 — up to 4 pcs (standard configuration)
- US3000 — up to 6 pcs (standard configuration)
- US2000 — up to 6 pcs (standard configuration)
Dyness
- B4850 — up to 6 pcs (standard configuration)
- B3 — up to 5 pcs (standard configuration)
Other battery models may be used provided that their dimensions and load limits are within the rack specifications.
